No Need Modes Co2 Laser Foam Inner Packages Cutting Engraving Machine
Introduction of Foam Inner Packages Cutting Engraving Machine
Laser cutting engraving machine is a kind of co2 laser machine,it's the conbination of computer technology and laser technology.can be used to both cut and engrave on all kinds of nonmetal materials.CNC technology as the basis,laser technology for the processing medium.processing materials can be melted and gasified instantly under the laser irradiation to achive the purpose of processing.
Features of Foam Inner Packages Cutting Engraving Machine
- Rapid cutting function for curved lines:any curved line can be cut successively and rapidly;running path of laser heads is like beautiful arc lines produced by the greatest racing cars.
- Design software of CAD,CORELDRAW,PHOTOSHOP are all supported for friendly human-computer interface and demand of the industries on-the-spot.
- Multi-file function:this serise machine can store 256 working files for users to choose needed files on the engraving machine under condition of off-line so that mass production of 256 different products can be realized easily.
- Signales do not have change and anti-disturbance ability is strong during long distance transportation when whole light segrating system coorpetating with high speed differential input and output circuit design which has 12 working state for output and working state for input to adapt to processing on-the spot.
- Cutting surface is smooth and precise during large area laser cutting for cutting and engraving demand of various customers and industries.
- Stable light path,industrial chiller to make sure the same output laser power from every site of working platform,high speed and efficiency,stable processing quality.
- This kind of machine is applied in craft and gifts,packaging and printing,stone,wood furniture,toys,electron,model,paper products,building decoration,etc.
The Specification of Foam Inner Packages Cutting Engraving Machine
| Product |
Foam Inner Packages Cutting Engraving Machine |
| Laser Type |
Sealed-off CO2 Laser Tube |
| Laser Power |
40W 50W 60W 80W 100W |
| Engraving Area (L*W) |
1300*900mm |
| Engraving Speed |
0-75000mm/min |
| Engraving Thickness |
0-20mm |
| Cutting Area |
1300*900mm |
| Cutting Speed |
0-60000mm/min |
| Cutting Thickness |
0-30mm |
| Repeated Positioning Accuracy |
±0.01mm |
| Working Voltage |
AC 110-220V ± 10%, 50-60HZ |
| Working Temperature |
0-45°C |
| Working Humidity |
5-95% |
| Minimum Character |
1mm |
| Lifting Working Table Type |
Standard: blade |
| Optional: honeycomb |
| Lifting Range |
0-300mm |
| Guide way |
Linear Guide way |
| Motor |
42 Stepper Motor, 57 Stepper Motor |
| Drive Mode |
Digital Subdivision Stepper Drive |
| Graphic Format Supported |
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc |
| Applicable Material |
Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper,
Plastic,Plexiglas, Plywood, Rubber, Wood, etc
|
| Cooling Mode |
Water Cooling |
| Auxiliary Device |
Exhaust Fan and Exhaust Pipe |
| Control Software |
DSP |
| Interface |
USB 2.0 |
| Size (L*W*H) |
1400*835*620mm |
| Weight |
120KG |
| Optional Device |
Water-cooling Machine, 360° Simple Rolling Machine, Chuck
Rolling Machine, Chuck Non-standard Rolling machine
|
Remarks:the parameter above is just some details of the machine,if you have any questions,pls be free to ask,I will reply to you as soon as possible.we can also customize the machine according to your requirements.
Application Materials for refrence
Acrylic | Plexiglass | PMMA | Perspex | Organic board | Double color plate
√
√
Wood | Plywood | Veneer | MDF | Balsa wood | Bamboo
√
√
Plastic | PP | PET | PC | PS | PES | PA | Plastic Foils&Films
√
√
Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather
√
√
Fabric | Cloth | Textile
√
√
Carpet | Mat | Rug | Wool felt
√
√
Paper | Cardboard | Chipboard | Press board
√
√
Foam&Filter | Mats Polyester (PES) | Polyethylene (PE)
√
√
Stone | Ceramic | Granite | Marble | Natural stone | Pebble stone | Slate
√
√
Rubber stamps | Synthetic & Silicone Rubber | Natural rubber
√
√
Glass | Pressed glass | Float glass | Crystal glass | Mirror glass
√
Remarks:the materials Above is just some common meterials,if your materials are not included in that form,pls contact me for more informations.

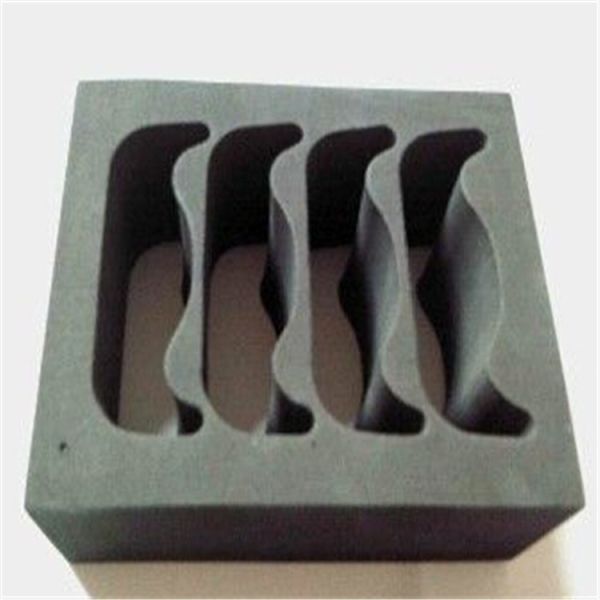

Some samples made by Foam Inner Packages Cutting Engraving Machine
Service and Warranty:
1, Within 7 days since your local customs clearance: if the machine’s any parts has any problems,
we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the machine parts
have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the machine parts have any problems, we can offer new machine parts
with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email.
5, Our technician can give you remote guide online(Skype / MSN/What's app/viber/Tel/Etc) if you have any question.
6, We can record videos of operating the machine.
7, Free training course in our factory.
8,Machine will be adjusted before it is delivered , operation disk/CD was included.
The packaging &Shipping of Foam Inner Packages Cutting Engraving Machine
♦ In order to protect the machines well,all the machines will be covered with plastic film firstly,then pack with the standard export plywood case.
♦ The machines can be shipped around 1 week after receiving the advance,if we have stock,then it can be shipped at once when we receive the payment.so you can contact with me to know more.
♦ Some necessary equipments will be shipped with the machine,such as air blower,industrial chiller,smoke pipe,tool kits,software etc
Pls be free to ask me any questions!
Looking forwards to cooperate with you!
